Orchard Beach Road Pole Barn

This project is a 100’ x 60’ pole barn (post-frame) structure designed for a property in North East, Pennsylvania. The building is planned for practical use, with large open interior space for equipment, storage, and work areas.

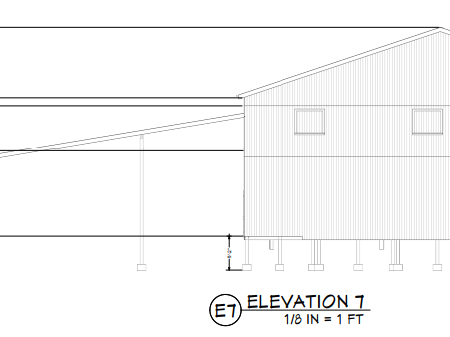

The drawings include the main building layout, exterior elevations, and structural planning needed to construct the post-frame system. The plan also includes a mezzanine level that adds extra usable space for office or support areas without taking away from the open main floor.

This set is meant to help construction move smoothly by providing clear foundation and framing details, roof layout information, and building notes. It’s a strong example of designing beyond residential work into larger-scale utility structures.

Important Details

• Project type: Post-frame / pole barn building

• Building size: 100’ x 60’

• Notable features: large overhead doors (16’ x 16’), mezzanine level

• Includes: foundation + slab planning, framing/roof plans, construction details
